PressureWorx ZL1/Universal PWM Fuel Module Controller

$429.00

Use this kit to add true returnless operation to a Gen5/6 Camaro SS, ZL1, or other single pump fuel module (C7, truck, Coyote, all FPDM Ford, etc.)

SKU: PWZL13B Categories: Chevrolet, Corvette C7 Fuel Module, Gen5/6 SS, All ZL1, and CTS-V3 Fuel Modules, GM Truck Fuel Modules (from FSCM Equipped Vehicles), Hot Rod, Restomod, and Universal Kits, Hot Rod, Restomod, and Universal Kits, PWM Controller Kits
Share:
  • Description
  • Resources
  • Warranty & Legal
Description

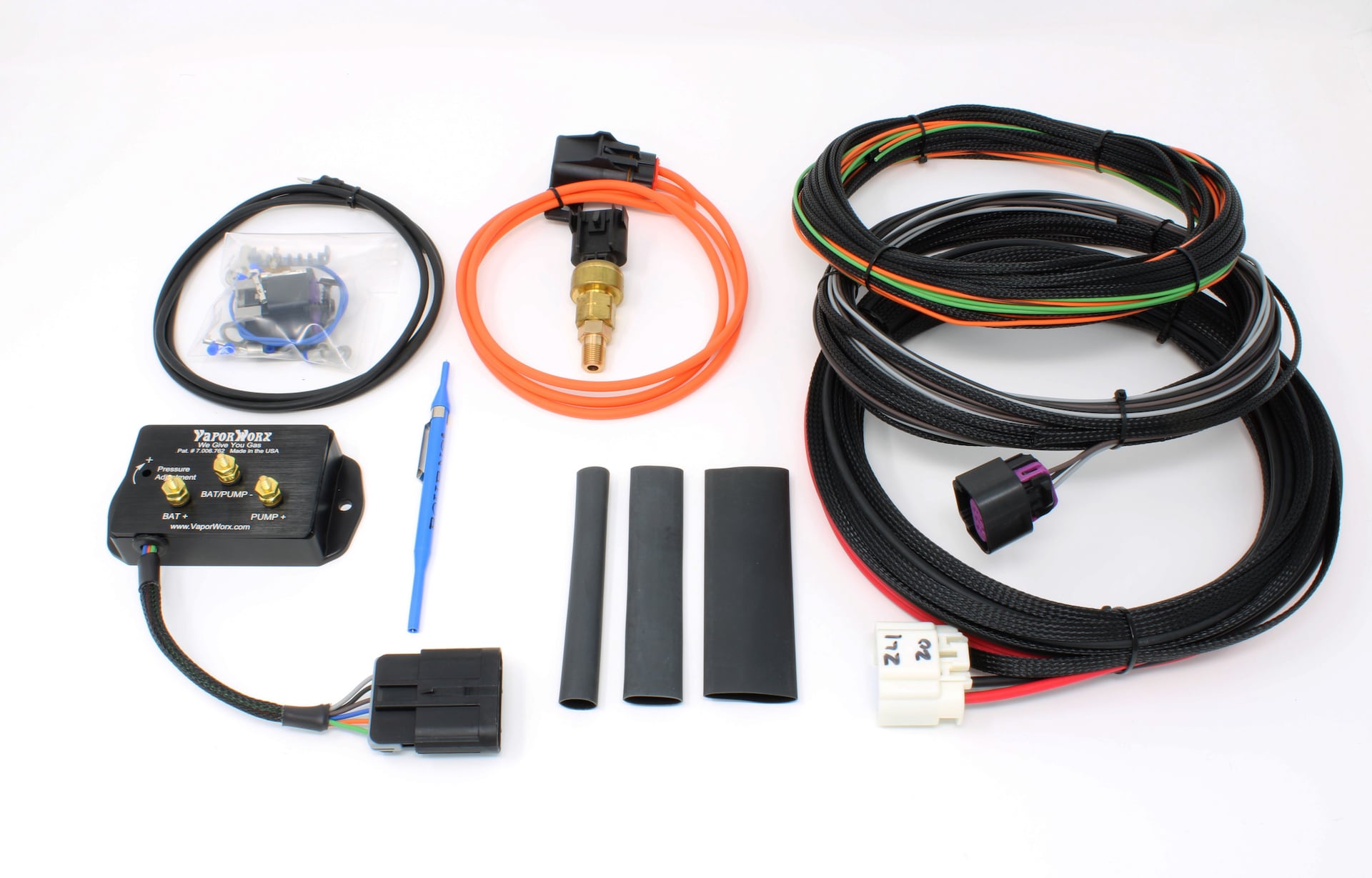

The PressureWorx fuel module control system has everything needed to provide a stand-alone, OE-type returnless fuel system.

When used with the low-cost GM, Ford, and many other OEM returnless PWM controlled fuel modules the system can provide a constant pressure or any base pressure with a 1:1 manifold referenced (MAP sensor based) fuel pressure. It will act just like a mechanical fuel pressure regulator would with the ECM tuned in the same manner.

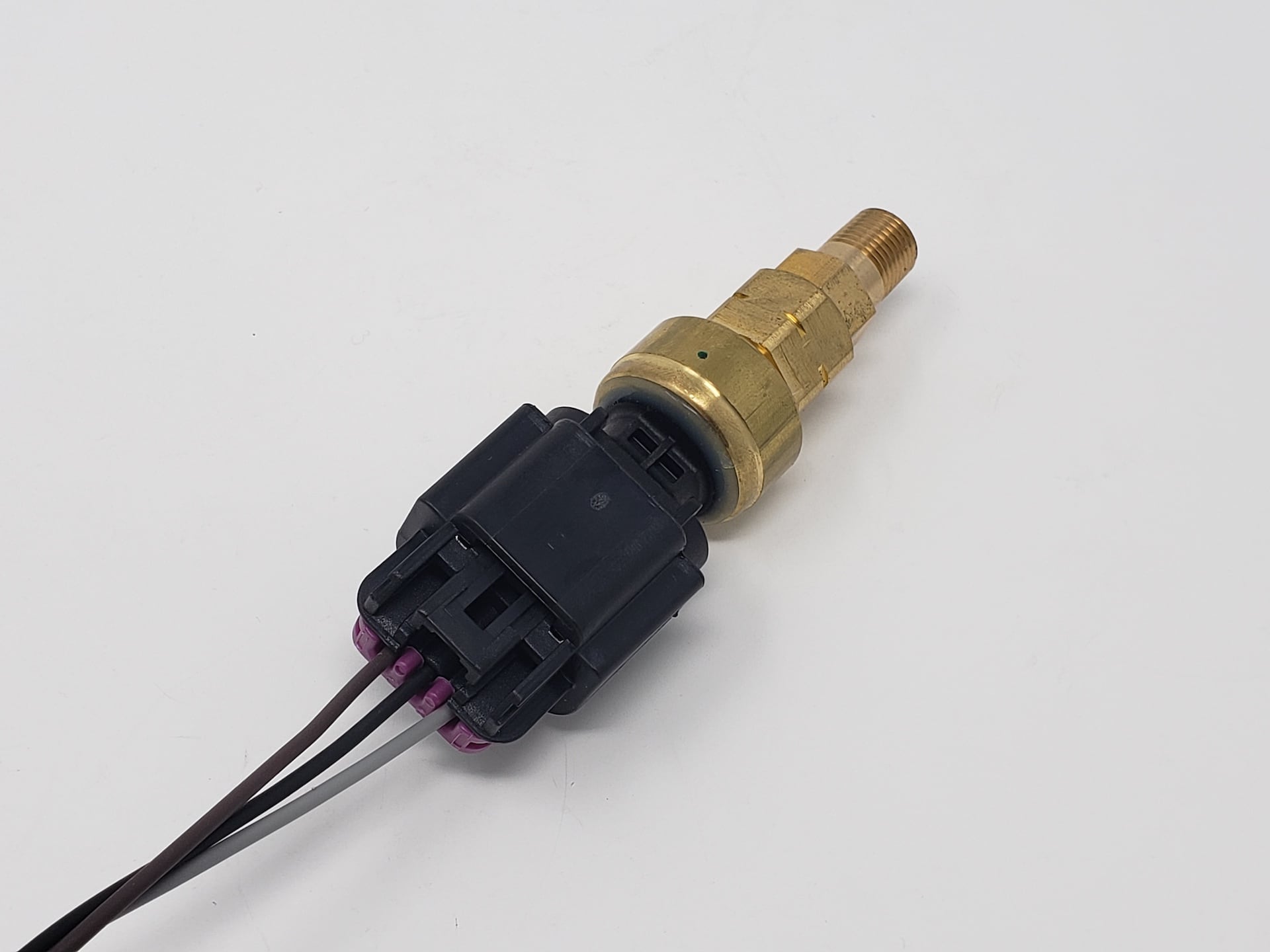

The fuel injector does not know if the fuel supplied is pumped by a return or returnless system. If manifold referenced fuel pressure is to be used, the standard PressureWorx option is tuned for the GM LSA 3bar 12592525 sensor. Other sensor tunes are available at no charge. The MAP sensor tune in the PressureWorx controller must match the MAP sensor so that the proper 1:1 pressure rate change can occur.

Suggestion: If your car is already running with a constant pressure tune and all you need is a larger volume fuel system, changing to MAP referenced fuel pressure is not needed or worth the extra expense toĀ retuneĀ the fuel maps in the ECM.

It is strongly suggested to NOT use an inline filter with with OEM fuel modules except Gen3 Coyote GT500. Final filtering is built in. Some aftermarket fuel filters have a built-in check valve which will cause a heat-soak related overpressure condition that will lock up port type fuel injectors.

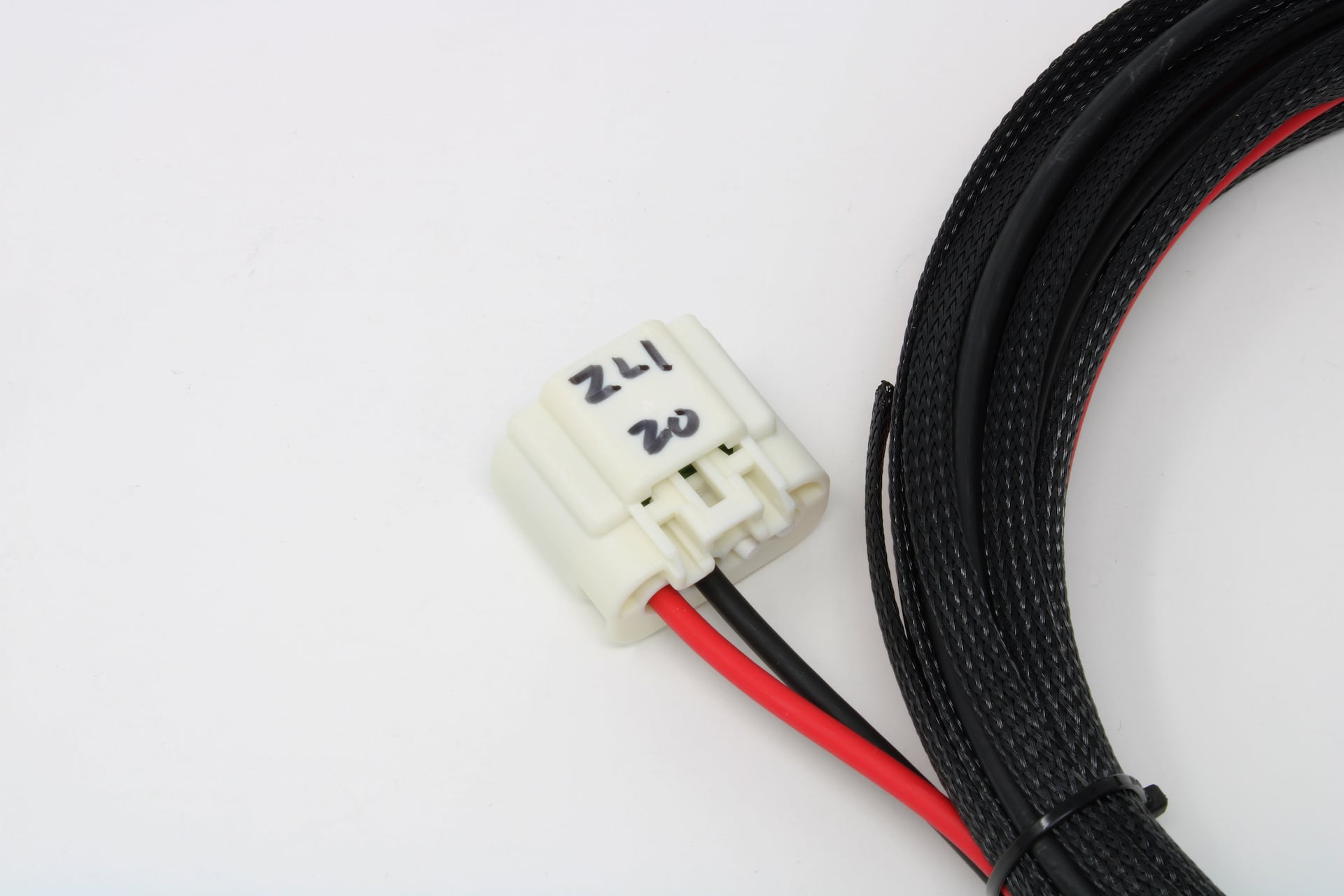

TheĀ PressueWorxĀ Fuel Module controller will also work well with these fuel modules. Fuel pump plug wiring changes may be needed:

  • Gen5 SS/ZL1
  • CTS-V3
  • GM Trucks
  • C7 Corvette (all models)
  • Ford Coyote Mustang (all generations)
  • Ford FPDM Mustangs (early 2000’s and forward using OEM FPDM equipped systems)

Base fuel pressures at idle are typically between 42-60psi, but theĀ VaporWorxĀ controller has much greater range if needed.

For a constant fuel pressure system, like that for all GM naturally aspirated LS and LT series engines, a 60psi pressure is typically used. For supercharged applications either a constant or MAP referenced fuel pressure can be used depending on how the ECM is tuned.

VaporWorx recommends using a MAP referenced fuel pressure on large fuel injected systems to allow injector duty cycles to be increased at idle/cruise, hence allowing greater tuning capability. MAP referenced fuel pressure also reduces the at idle power requirements by 2/3 vs traditional return type fuel systems.

All OEM type fuel modules will not work onĀ carburetedĀ applications. A minimum 43psi is needed for proper WOT operation.

When combined with the Gen5 Camaro ZL1 fuel module, a 750hp naturally aspirated / 650hp supercharged fuel pumping system is easily obtained. This setup has been used in thousands of applications with good success, easierĀ fitment, and low overall cost. However, theĀ PressureWorxĀ Controller will work with any Gen5/6 fuel module.

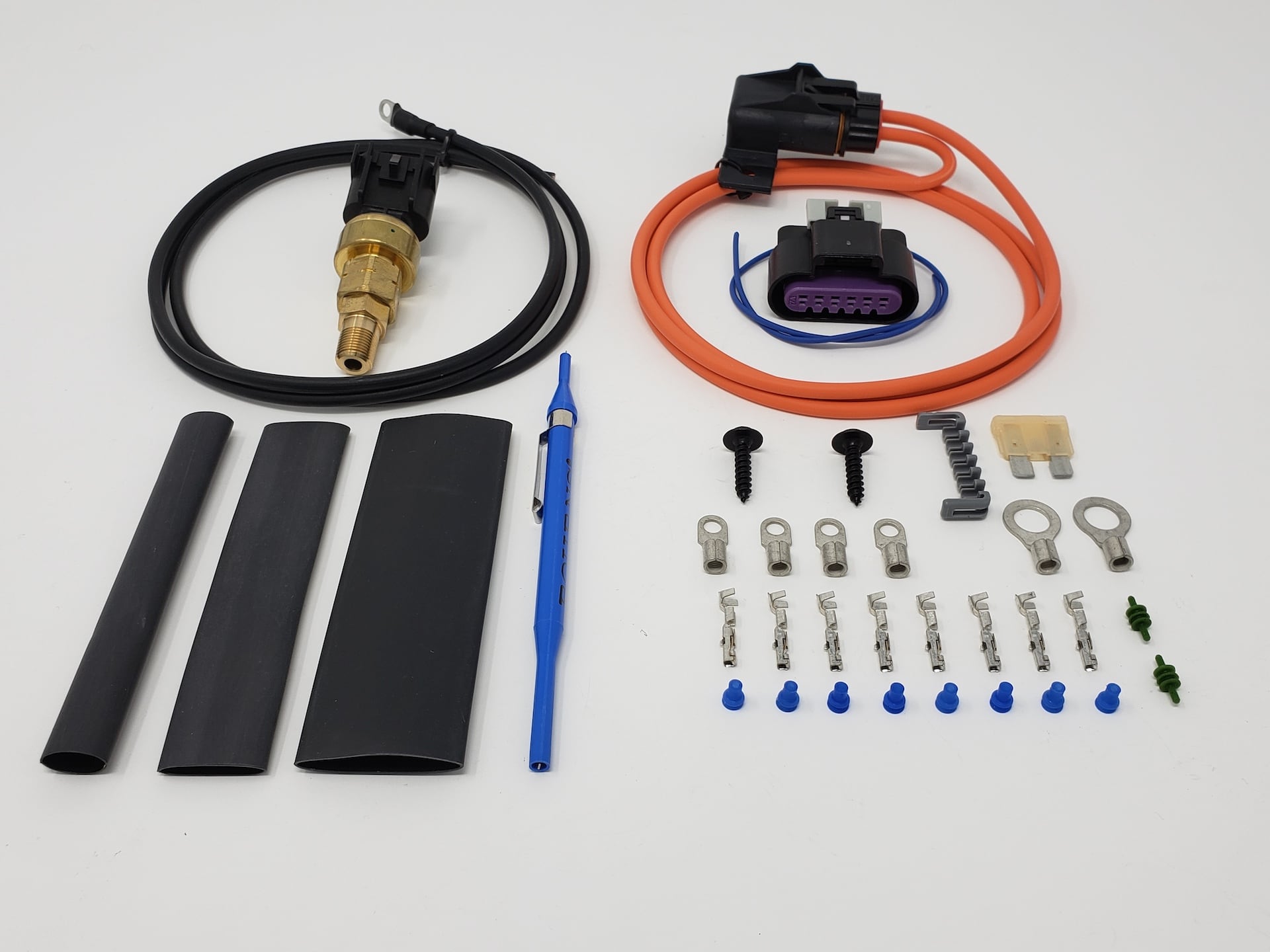

TheĀ PressureWorxĀ Fuel Module Controller systemĀ includes these standard features:

  • Everything needed electrically to drive the fuel pump module. No relays, external regulators, or return lines needed.
  • Unmatched low fuel level capability when used with an OEM style fuel module.
  • Up to 2/3 reduction in power to the fuel module during idle and cruise vs traditional systems.

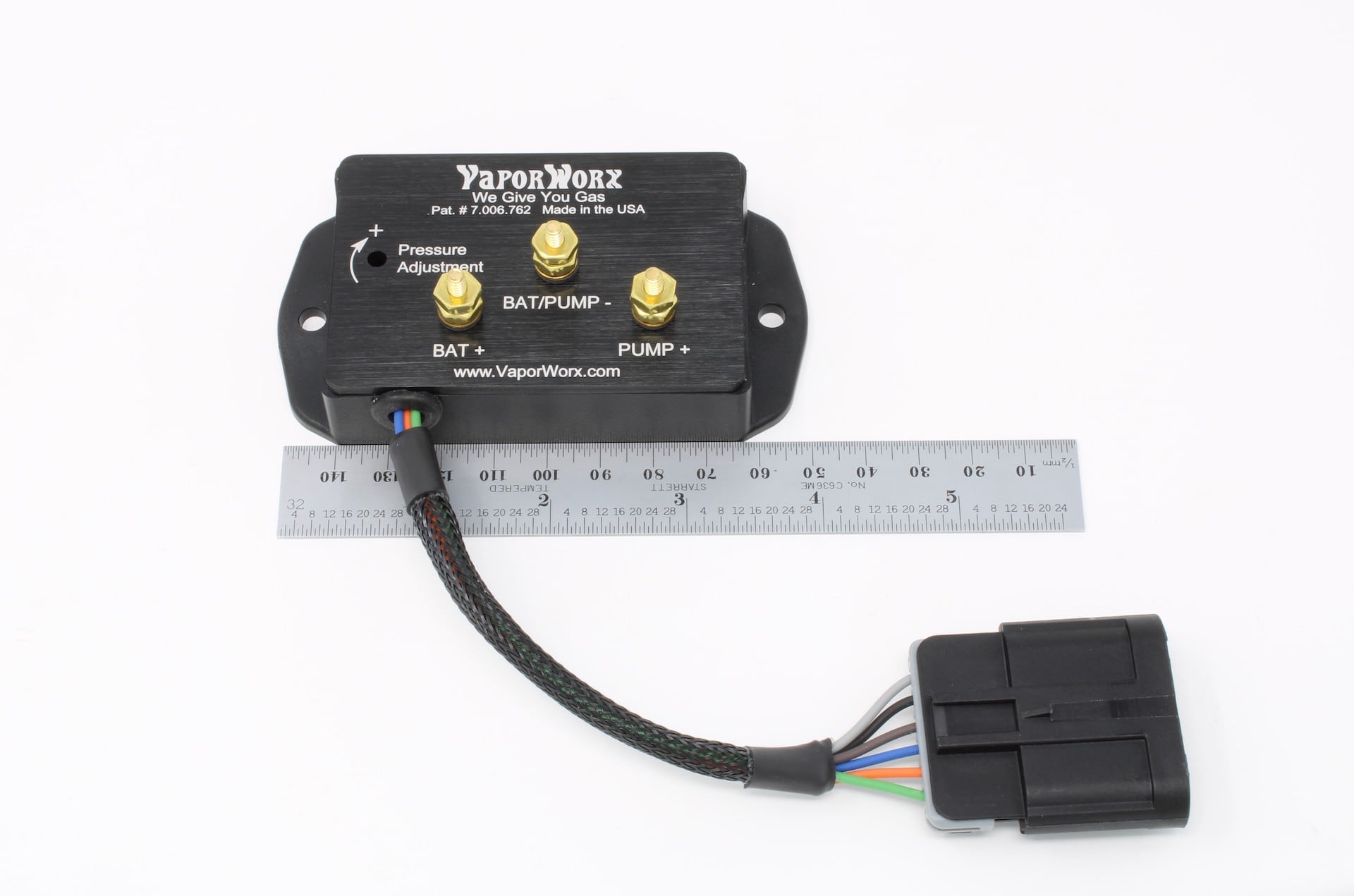

  • 40A minimum continuous power rating in a compact controller package. Total size 4ā€L x 2.1ā€W x 1-5/8ā€H.
  • Over-temperature shutdown with automatic reset that will operate indefinitely without damage.
  • Short circuit protection that will operate indefinitely without damage.
  • OEM Delphi/Aptiv connections for terminals, seals, and connector bodies where appropriate.
  • All cross-linked polyethylene wiring.
  • UL94 rated components used throughout.
  • Integrates into the OE ECM to allow all safety systems to remain functional.
  • 10-22v operating capacity. Can be used with voltage boosters. The preferred booster is the JMS FuelMax. Lower than 10v applied to the turn on circuit will cause controller shutdown to protect from an AFR lean condition.
  • Can be used in constant orĀ manifoldĀ referenced fuel pressure modes. Manifold referenced suggested to further reduce electrical demand and for vehicles with large, 100#/hr+, injectors.

The basic wiring layout and connections are shown in the following diagram:

SKU: PWZL13B

This product has dedicated documentation available:

Click the button to view the documentation, or click hereĀ for download options.

View the Documentation

NEW! Find your perfect PWM Controller Kit

It’s easier than ever to be sure you’re getting the right PWM Controller Kit for your build! Click the button below to try out our new PWM Controller Kit Selection Tool and find the perfect kit, specifically compatible with your application, based on the options you select.

Find Your PWM Kit
Resources

Resources

Documentation Downloads

PressureWorx ZL1/Universal (PWZL13B) Instructions

Download  View Online  Quick View

Recommended Reading

We created the 10-part informational series "Fuel Delivery Systems - An Understanding," which covers important basics related to fuel delivery systems.

This series is one of the many resources available in our comprehensive Resource Hub, which you can check out to learn more about fuel delivery systems & our products!

PWM Controller Kit Selection Tool

If you have questions about compatibility, or want to see what PWM Controller Kits are available for your build (including future changes, like adding more horsepower) try our PWM Controller Kit Selection Tool.

Further Information

For more information, please have a look at our FAQ, or feel free to contact us with any questions.

If you are wondering about compatibility with your build, or are interested in a made-to-order part (including customizing this product or any others), click here to get a free application-specific custom recommendation.
