Home / Shop / Fuel Module Mounting Rings - Weld In / Fuel Pump Module Mounting Ring – Aluminum
Click to enlarge

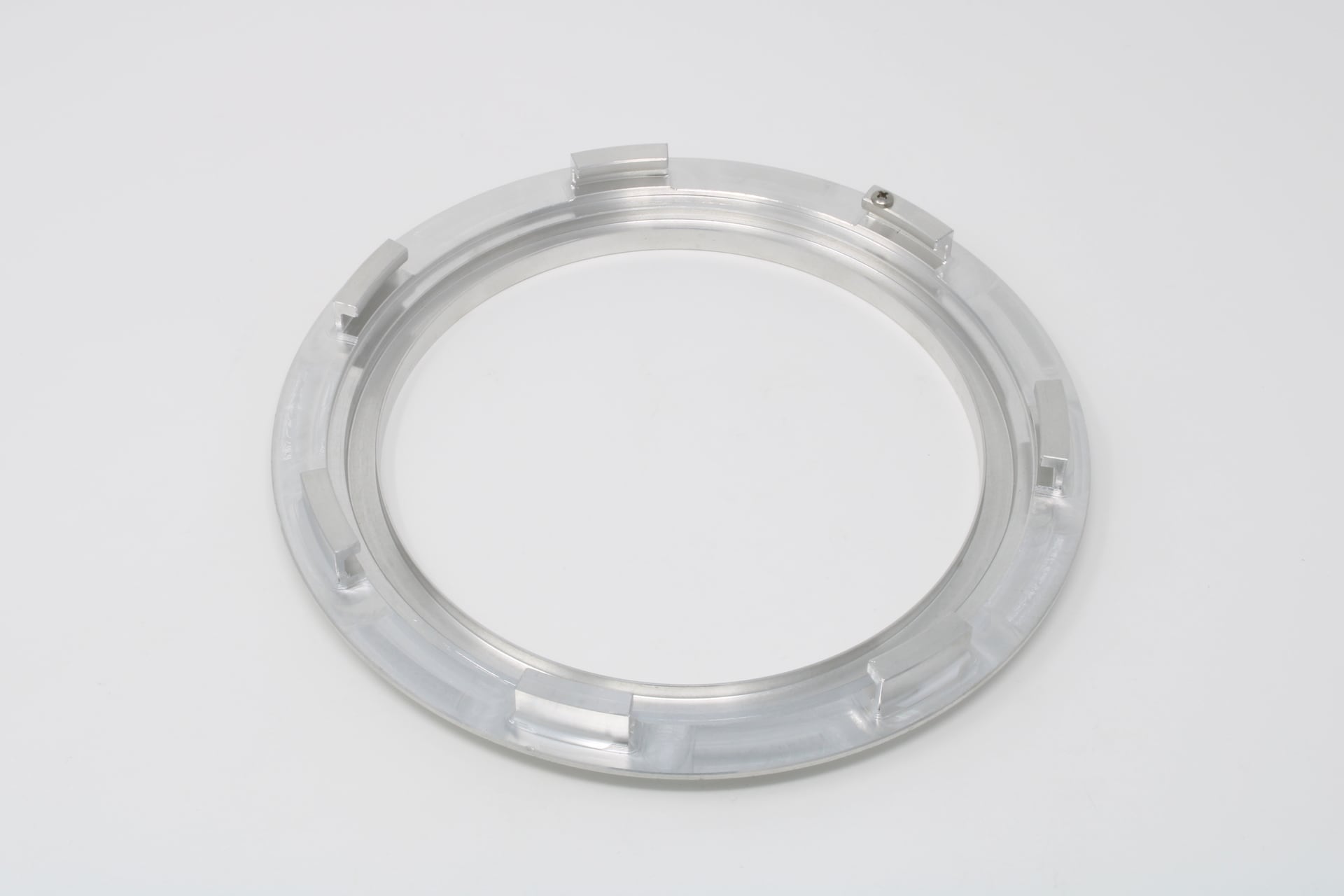

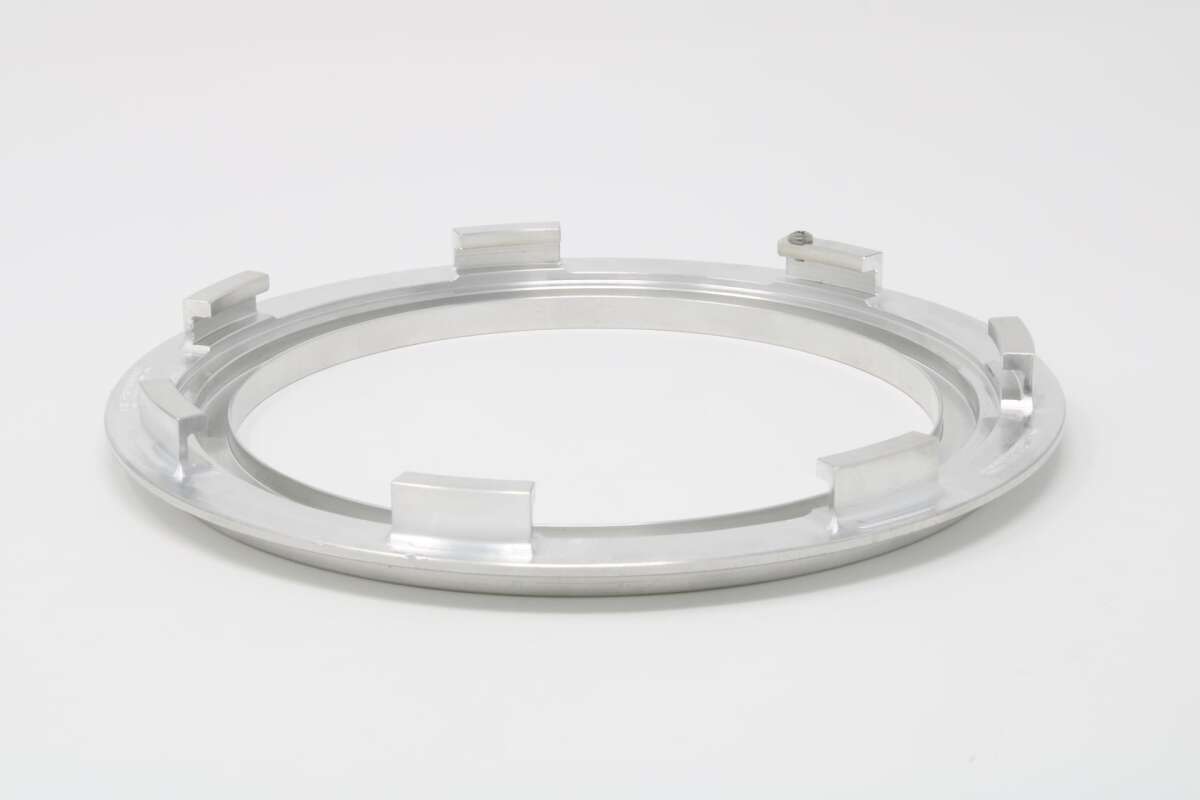

Fuel Pump Module Mounting Ring – Aluminum

$129.00

Aluminum weld-in fuel module mounting ring. Build your own mounting tray, weld in the ring, and insert the appropriate OEM fuel module!

SKU: GM5AL Category: Fuel Module Mounting Rings - Weld In
Share
Facebook Twitter Email Pinterest linkedin
  • Description
  • Resources
  • Warranty & Legal
Description

The VaporWorx Fuel pump module mounting ring will fit with modules that have a 6″ major diameter (not including the alignment tab) hat diameter.

Made of 6061AL Aluminum.

The ring can be welded from the top or bottom, but most applications are top welded. A standard OEM cam locking ring can be used (not included).

Compatibility & Installation:

  • For LS3, ZL1, and CTS-V2 pump modules.
  • For any pump module with a 6″ major hat diameter. Fits Ford, GM, Dodge, etc fuel pump modules (common USCAR design.) Fits the popular late model GM truck tall modules.
  • Mounting hole diameter 6-3/8″.
  • Target depth to bottom of tank: LS3 and CTS-V2 5.5 – 7″ mounting depth range. Gen5 ZL1 6 – 7″. Additional fuel module mounting dimensions are available here.
  • Welding required.

SKU: GM5AL

This product has supplementary documentation available:

Click the button to view the documentation, or click here for download options.

View the Documentation
Resources

Resources

Documentation Downloads

Fuel Module Mounting – Min/Max Tank Depth Dimensions

Download  View Online  Quick View

Recommended Reading

We created the 10-part informational series "Fuel Delivery Systems - An Understanding," which covers important basics related to fuel delivery systems.

This series is one of the many resources available in our comprehensive Resource Hub, which you can check out to learn more about fuel delivery systems & our products!

Further Information

For more information, please have a look at our FAQ, or feel free to contact us with any questions.

If you are wondering about compatibility with your build, or are interested in a made-to-order part (including customizing this product or any others), click here to get a free application-specific custom recommendation.
