Corner Pickup Kit

$124.95

Add corner pickups to your Gen5 Camaro, CTS-V2, and C7 Corvette fuel modules for the ultimate in low fuel level performance.

SKU: CPTKIT Categories: Corner Pickup Kits, Corner Pickup Kits, Fittings and Hardware
Share:
  • Description
  • Resources
  • Warranty & Legal
Description

Available again!

This corner pickup kit can provide the ultimate in low fuel level performance for Gen5 Camaro, CTS-V2, and C7 fuel modules. Will also work with other fuel modules that have a suction port/in-tank crossover line connection usually located on the lower reservoir.

Suction pump connection needed. Not for use on stand-alone pumps.

This kit includes:

  • Two Genuine Walbro pickups (vented)
  • In-tank rated flexi-hoses
  • Stainless full-contact Odiker clamps
  • 45* 3/8″ x 5/16″ quick connector fitting
  • “Y”, “T”, and in-line connector fittings

Note: For CTS-V2 only module applications, to adapt to the odd-sized in-tank connection, see our CTS-V2 to 3/8″ in-tank crossover adapter.

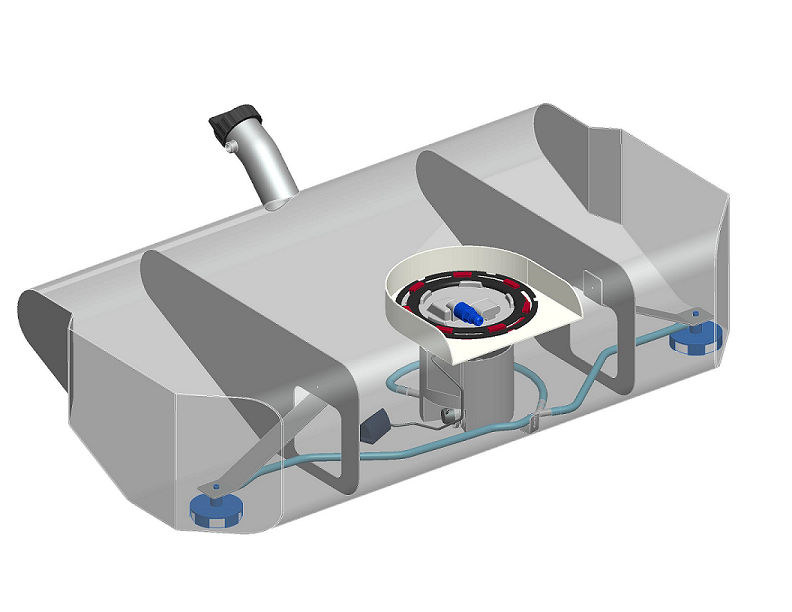

Below is a typical hose and corner pickup layout:

SKU: CPTKIT

Resources

Resources

Documentation Downloads

There are no downloadable resources available for this product.

Recommended Reading

We created the 10-part informational series "Fuel Delivery Systems - An Understanding," which covers important basics related to fuel delivery systems.

This series is one of the many resources available in our comprehensive Resource Hub, which you can check out to learn more about fuel delivery systems & our products!

Further Information

For more information, please have a look at our FAQ, or feel free to contact us with any questions.

If you are wondering about compatibility with your build, or are interested in a made-to-order part (including customizing this product or any others), click here to get a free application-specific custom recommendation.
