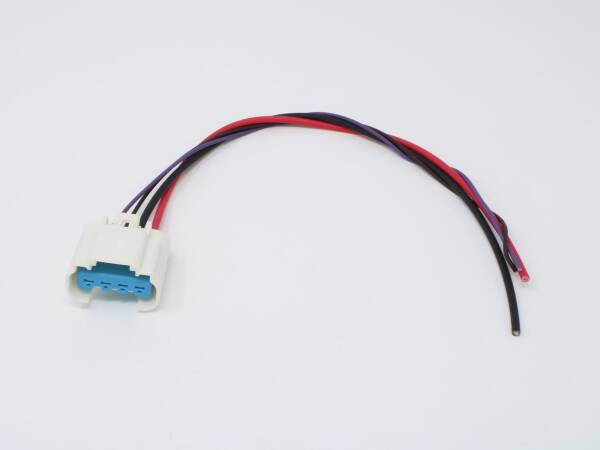

Wiring Pigtail and Plug for Gen5/6 LS3 and ZL1 Fuel Modules

$23.50

SKU: G8ZL1WHS Categories: ,
Description

GM Fuel Module Plug with wiring pigtail.

Features include:

  • Genuine Delphi connector, terminals, and seals crimped with single action Rennsteig Tools.
  • 12ga/20ga XLPE cross-linked insulated wiring. 12″ long each.
  • For use in Gen 5/6 Camaro, CTS-V3, and C7.

Wiring:

  • 12ga red = Pump +
  • 12ga black = Pump –
  • 20ga brown = Fuel level sensor ground
  • 20ga violet = Fuel level sensor to gauge

SKU: G8ZL1WHS

Resources

Resources

Documentation Downloads

There are no downloadable resources available for this product.

Recommended Reading

We created the 10-part informational series "Fuel Delivery Systems - An Understanding," which covers important basics related to fuel delivery systems.

This series is one of the many resources available in our comprehensive Resource Hub, which you can check out to learn more about fuel delivery systems & our products!

Further Information

For more information, please have a look at our FAQ, or feel free to contact us with any questions.

If you are wondering about compatibility with your build, or are interested in a made-to-order part (including customizing this product or any others), click here to get a free application-specific custom recommendation.

Warranty & Legal

Complementary & Supplementary Products

GM 3/8″ Quick-Connect to Male AN6 Adapter, Black

$13.49
Add to cart

Related products

CTS-V2 12mm to 3/8″ In-Tank Crossover Adapter

$39.00
Add to cart

Fuel Module Plug Kit – GM

$13.00
Add to cart

Fuel Pressure Sensor Datalogging Kit

$74.95
Add to cart

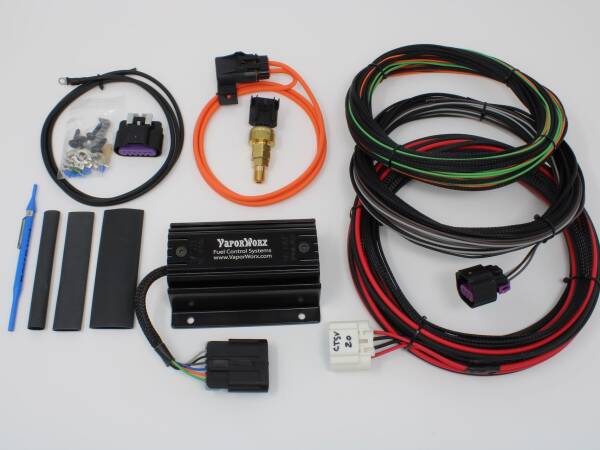

Pontiac G8 PressureWorx PWM 3bar Kit For ZL1 or Super ZL1
