MAP Sensor Mounting Bracket / Mounting Block – Bosch

$44.95

SKU: MAPBKTASSY Categories: Fittings and Hardware, MAP Sensor Remote Mounting Bracket
Share:
  • Description
  • Resources
  • Warranty & Legal
Description

Looking for a remote mounting bracket for the modern three-wire Bosch sensors used in GM LS engines?

VaporWorx has the solution.

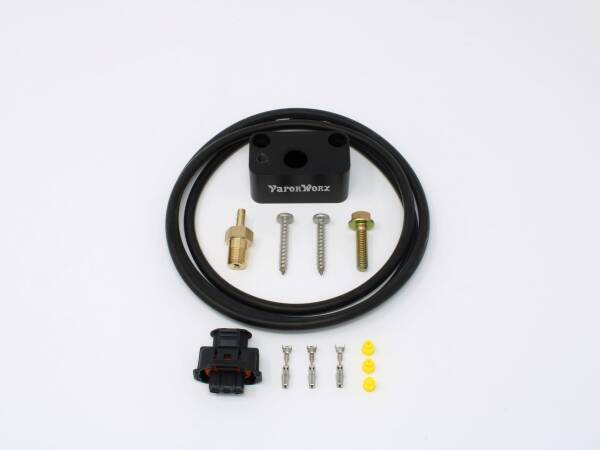

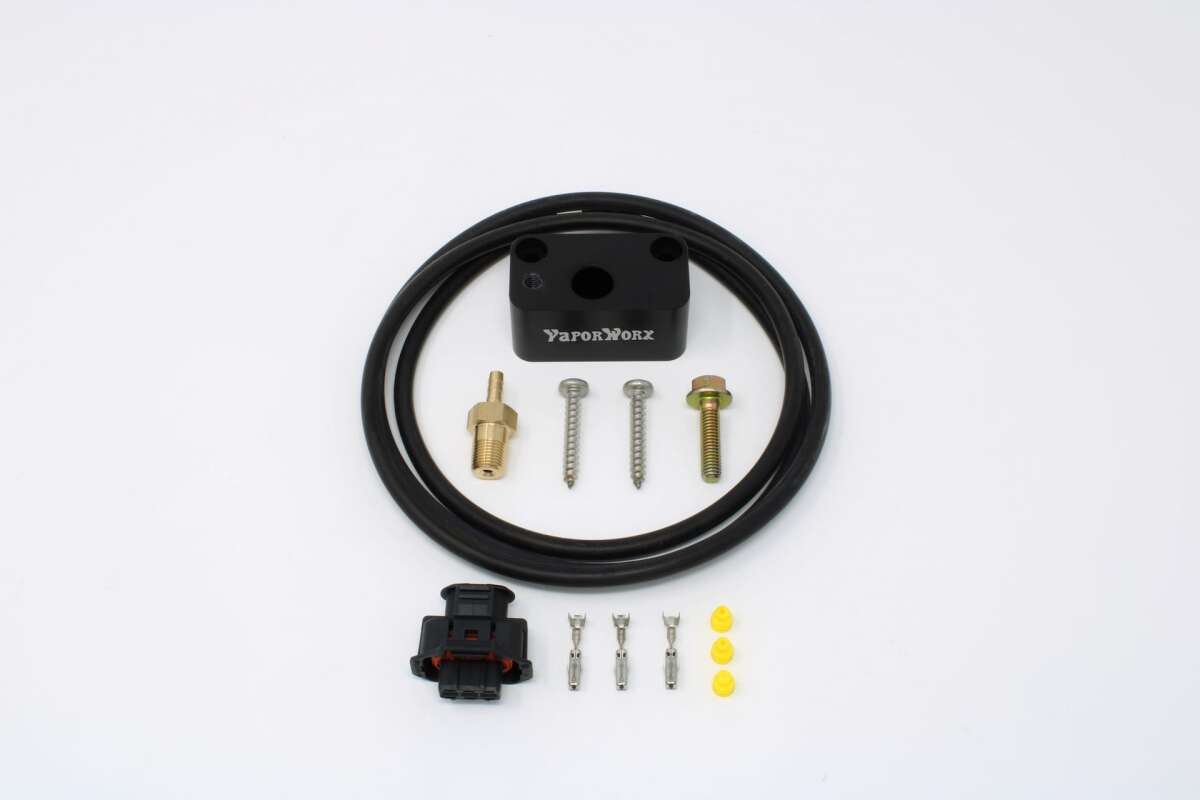

Compact and rugged, this kit comes with everything needed to remote mount your sensor, including the electrical plug and components.

This bracket is an ideal solution for remote mounting the Bosch-style three-wire MAP sensor and for dynamometer operators looking for a simple to use and adapt system.

Features of the sensor bracket include:

  • 6061 Type III hardcoat anodized aluminum.
  • Three pin plug, terminals, and seals.
  • Brass barb fitting for 1/8ā€ hose x 1/8ā€ – NPT thread.
  • Sufficient clearance to use larger hoses or AN fittings for vacuum line.
  • MAP sensor hold-down screw.
  • Stainless steel mounting screws.
  • Four feet of vacuum hose.

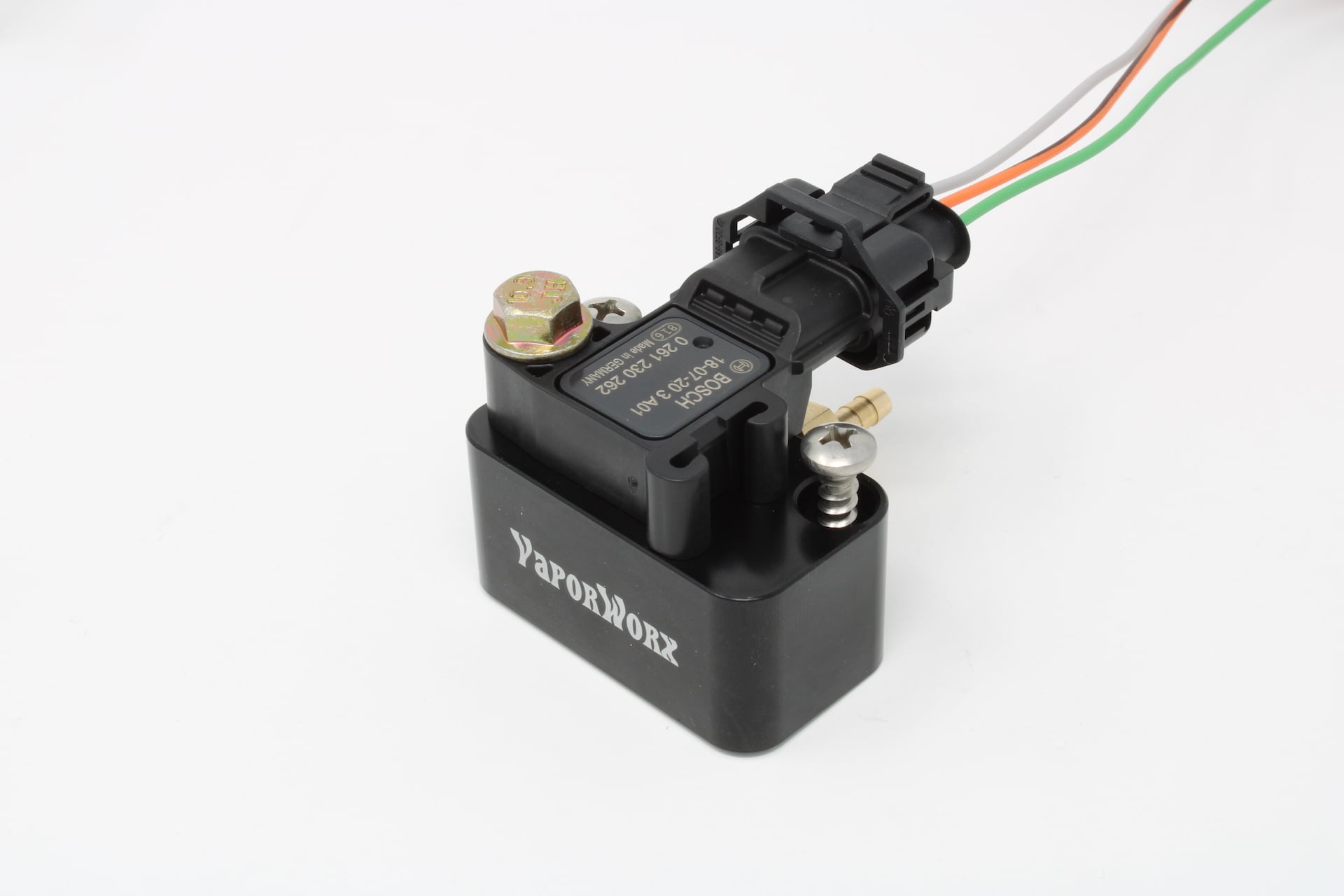

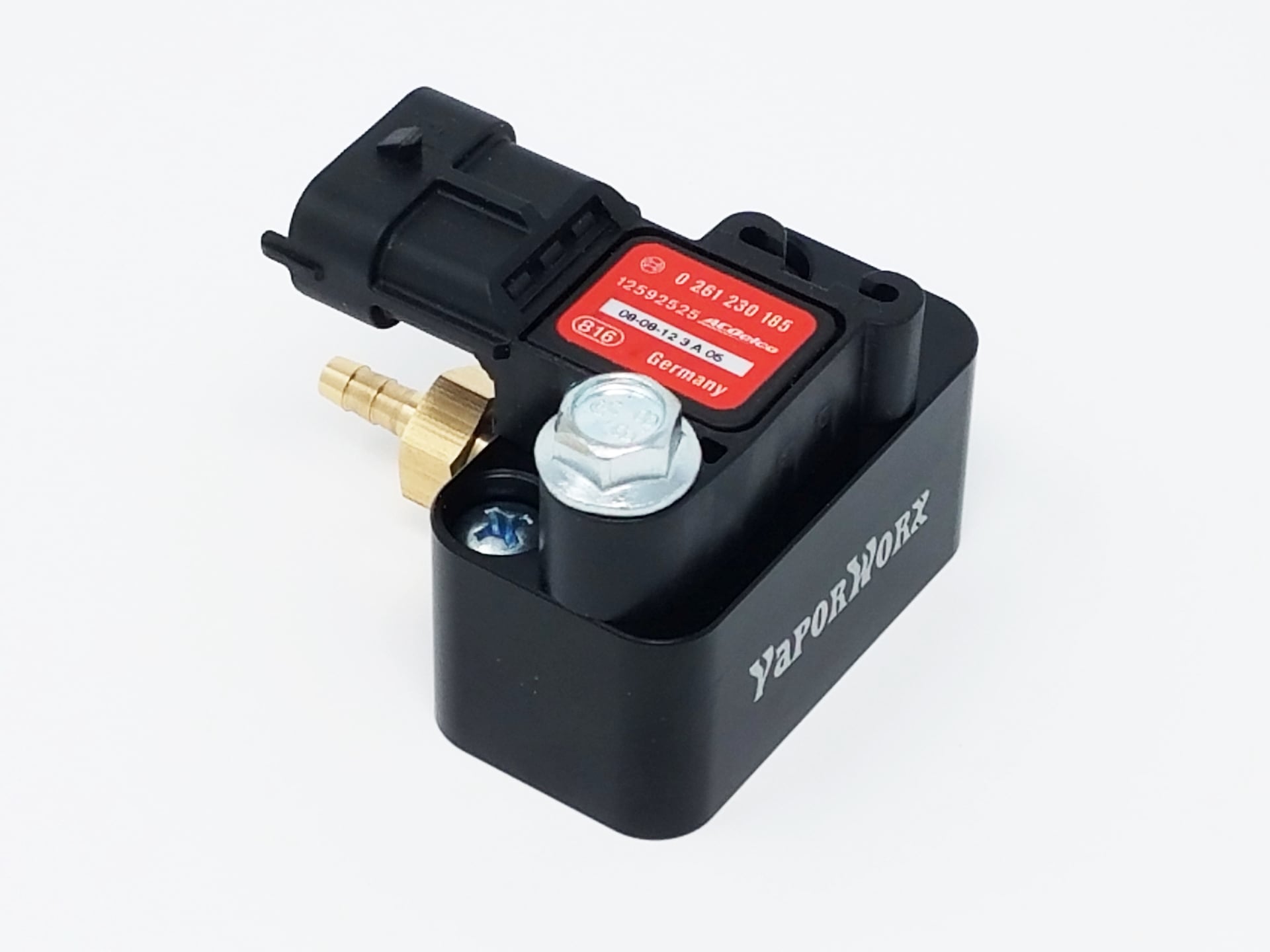

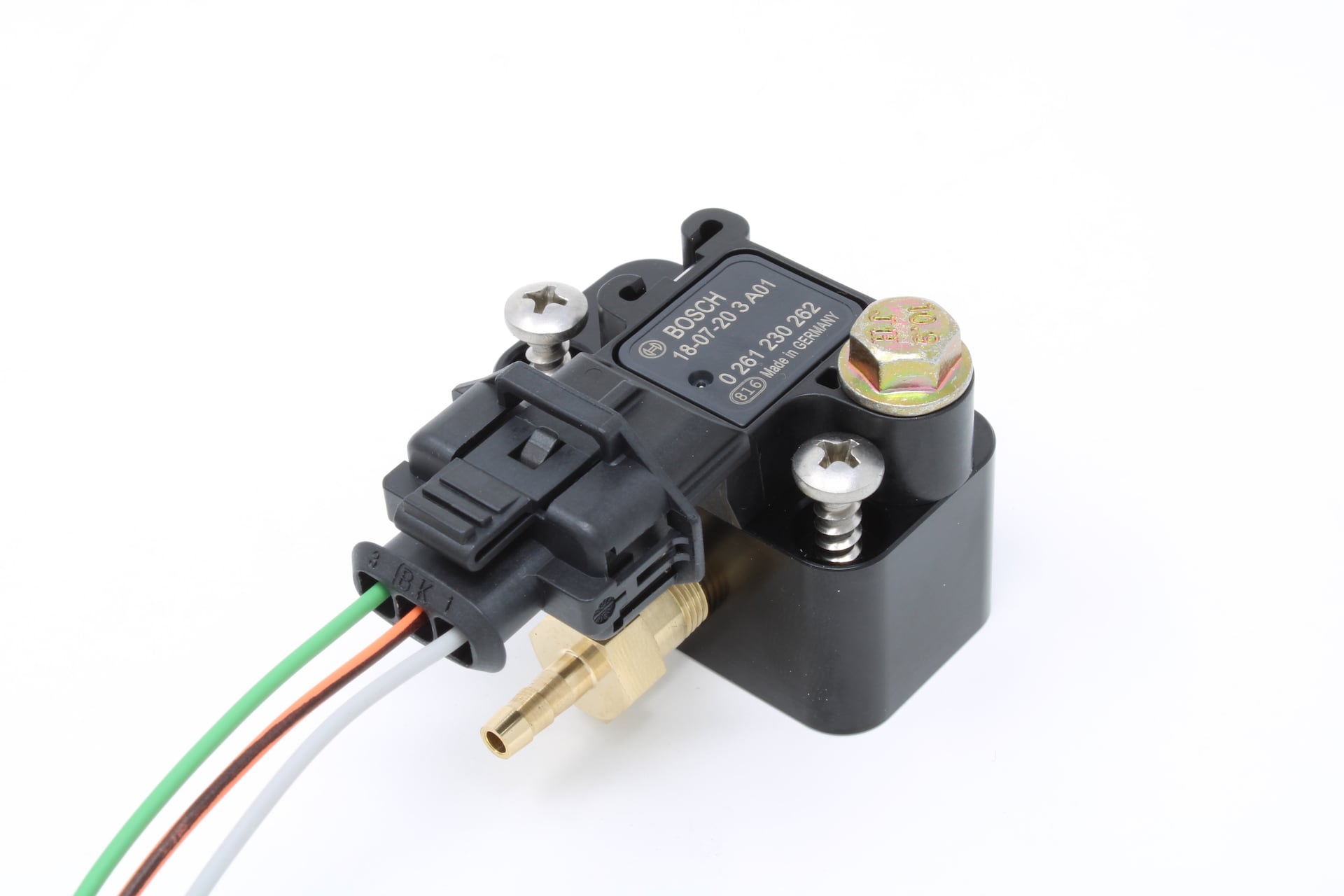

The sensor shown for the GM LSA/LS9 3bar and LT1 applications (not included). Will also fit similar 1bar and 2bar sensors. Will not fit four-wire TMAP Bosch/GM sensors.

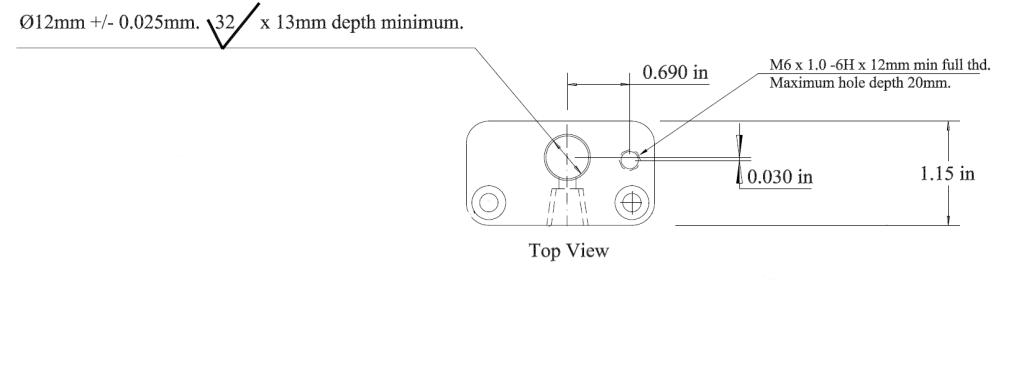

Top view of mounting surface showing MAP sensor sealing hole (12mm) and offset distances for threaded hold-down hole.

NOTE: The electrical plug included is meant for a GM LSA/LS9 12592525 sensor. The plug is “keyed” for this sensor. The keys can be trimmed off to fit other similar style Bosch sensors.

SKU: MAPBKTASSY

Resources

Resources

Documentation Downloads

There are no downloadable resources available for this product.

Recommended Reading

We created the 10-part informational series "Fuel Delivery Systems - An Understanding," which covers important basics related to fuel delivery systems.

This series is one of the many resources available in our comprehensive Resource Hub, which you can check out to learn more about fuel delivery systems & our products!

Further Information

For more information, please have a look at our FAQ, or feel free to contact us with any questions.

If you are wondering about compatibility with your build, or are interested in a made-to-order part (including customizing this product or any others), click here to get a free application-specific custom recommendation.

Warranty & Legal

Complementary & Supplementary Products

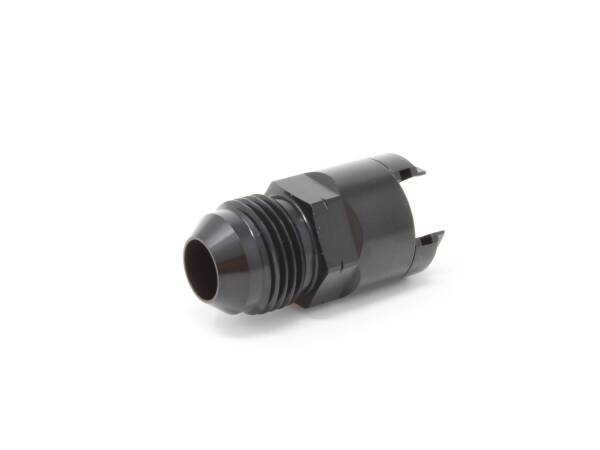

GM 3/8″ Quick-Connect to Male AN8 Adapter, Black

$13.49
Add to cart

GM 3/8″ Quick-Connect to Male AN6 Adapter, Black

$13.49
Add to cart

Related products

AN6 Male x 3/8″ Hardline Tube Adapter

$8.49
Add to cart

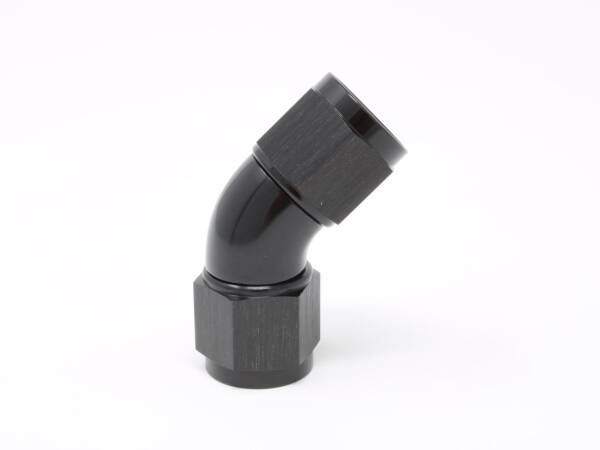

AN6 45* F-F Swivel, Black
